ITR x MILLER QUICK HITCHES
ITR Pacific is the authorised Australian distributor for Millers range of excavator quick hitches. Miller is one of the world’s leading earthmoving attachment providers, offering an extensive range of hitches and buckets designed to enhance performance and improve the reliability of your excavators. From design and manufacturing through to distribution and delivery, ITR x Miller supplies some of the safest and most advanced hitches and buckets on the market.
View Our ProductsQuick Hitch Range
Our extensive range of high-performance hydraulic quick hitches is designed for 1 to 50 tonne excavators across construction, mining, landscaping, road projects, and more. Engineered for excellent performance and the highest standards of safety, these quick hitches allow operators to switch attachments in seconds, reducing downtime and increasing productivity on any job site. Built from premium materials with precision casting and reinforced mechanisms, our hitches deliver exceptional strength and reliability even in the toughest working conditions. Whether you are working in general earthmoving, trenching, or demolition and more, our versatile range ensures a perfect fit for mini excavators of all sizes, making every project faster, safer, and more cost-effective.

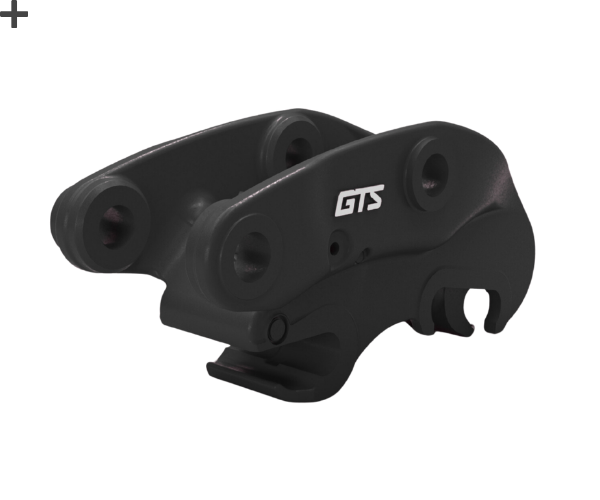

GTS Hydraulic Quick Hitch
Hydraulic Quick Hitch for 1 to 6 tonne compact excavators

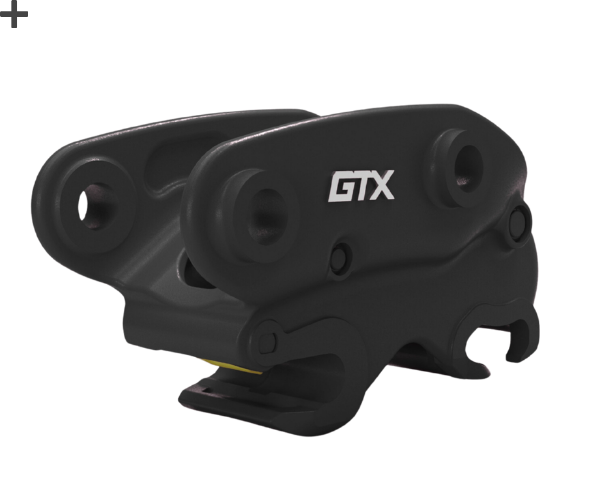

GTX Hydraulic Quick Hitch
Hydraulic Quick Hitch suitable for excavators from 8 to 50 tonnes

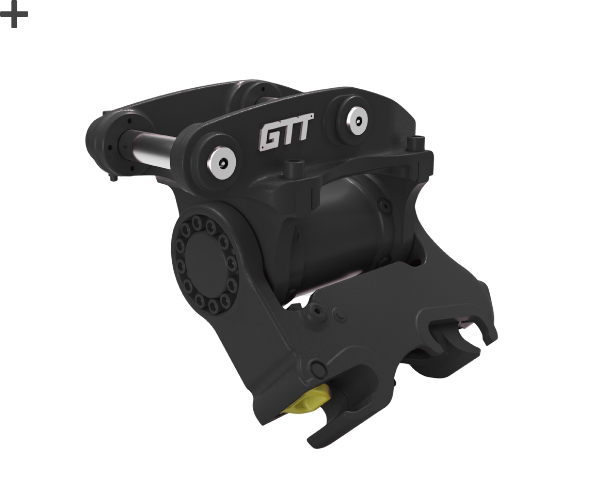

GTT Hydraulic Quick Hitch
Miller GT Tilt compact quick hitch suitable for 1 to 6 tonne mini excavators

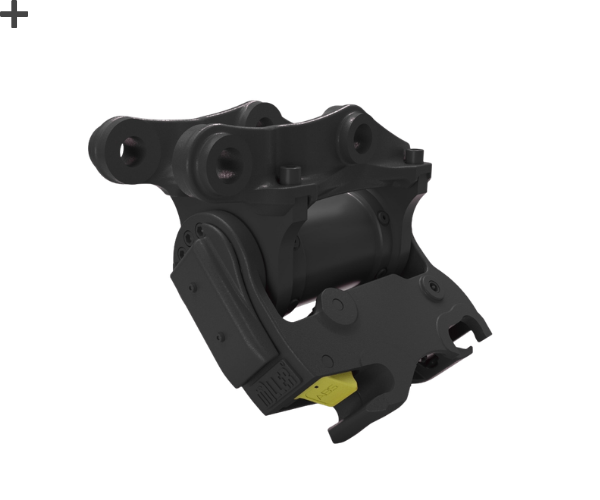

PLT Quick Hitch
Powerlatch tilting quick hitch offers 180-degree tilt for 3.5 to 20 tonne excavators
Key Features
1. Lower Offset Design
Features a lightweight, low-profile design to maintain strong breakout forces while delivering machine stability and increasing overall productivity.
2. High Strength Cast Design
Built with a uniquely curved, lightweight, wholly cast frame made from high-tensile, heat-treated steel, delivering exceptional strength and reducing overall hitch weight for minimal fuel burn and easy manoeuvrability.
3. Twinlock Front & Rear
Equipped with a bi-directional mechanical locking system to maintain engagement of the front pin to prevent release until the hitch is in a safe operating position.
4. Universal Connectivity
Enables quick and efficient connections to a wide range of OEM attachments, with a connection time of only 18 seconds compared to 5 minutes for a manual hitch or 20 minutes for direct mounting.
5. ISO 13031/AS13031 Compliance
Compliant with all global quick hitch safety regulations and features a self-contained safety system to ensure attachments remain secure and engaged, even in the event of complete hydraulic failure.
Specifications
| GTS Range | Excavator Mass (t) | Hitch Mass (kg) | Pin Diameter (mm) | Min Pickup Width (mm) | Pin Pickup Range (mm) |
|---|---|---|---|---|---|
| Range 0A | 1-1.5 | 15.7-17.5 | 30 | 94/96 | 85-118 |
| Range 0B | 1.5-2 | 17.9-21.0 | 30 | 103 | 121-161 |
| Range 1A | 2 | 23.2-26.9 | 35 | 109/122 | 125-150 |
| Range 1B02 | 2-3 | 28.6-31.5 | 35 | 117 | 160-200 |
| Range 1B01 | 3-3.5 | 34.4-35.7 | 38/40 | 117 | 172-215 |
| Range 2A | 5 | 55.6-58.1 | 45 | 144 | 220-285 |

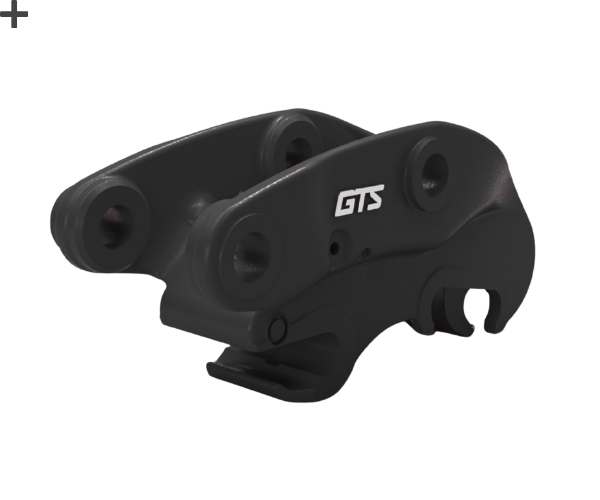

The GTS Hydraulic Quick Hitch is suitable for 1 to 6 tonne mini excavators operating in small-scale construction, landscaping, trenching and utilities, property maintenance, road repair, and more. Wholly cast, the GTS Quick Hitch is lightweight, exceptionally strong and delivers one of the safest fully hydraulic hitch solutions on the market.
Achieving high-speed connections of only 18 seconds, compared to 20 minutes when directly mounting an attachment, the GTS Quick Hitch enables operators to pick up a wide range of OEM attachments with ease.
Key Features
1. Lower Offset Design
Features a heavy-duty, low-profile design to maximise breakout forces and promote digging performance while providing machine stability and increasing overall productivity.
2. High Strength Cast Design
A high-strength, curved frame wholly cast from high-tensile, heat-treated steel for exceptional strength and extended wear life for all applications.
3. Twinlock Front & Rear
Designed with an independent, bi-directional mechanical locking system for handling higher loads on larger excavators, ensuring safer operation in more demanding conditions.
4. Hydro-pneumatic Cylinder
Features a dual-lock cylinder system for an additional layer of safety that ensures the attachment remains securely locked even in the event of total hydraulic loss.
5. ISO 13031/AS13031 Compliance
Complies with all global quick hitch safety regulations and features a self-contained safety system that ensures attachments remain secure and engaged even in the event of total hydraulic loss.
Specifications
| GTX Range | Excavator Mass (t) | Hitch Mass (kg) | Pin Diameter (mm) | Min Pickup Width (mm) | Pin Pickup Range (mm) |
|---|---|---|---|---|---|
| Range 3 | 8-10 | 88-97 | 50/60 | 164/184 | 50: 273-312 60: 290-315 |
| Range 4 | 11-14 | 185-193 | 60/65 | 216 | 60: 345-415 65: 355-420 |
| Range 5 | 15-19 | 264-277 | 70/80 | 272 | 70: 370-465 80: 385-470 |
| Range 6 | 20-22 | 330-347 | 80 | 302 | 430-520 |
| Range 7 | 24-30 | 422-479 | 80/90 | 321 | 80: 440-510 90: 450-520 |
| Range 8 | 30-36 | 585-704 | 90/100 | 340 | 90: 480-590 100: 495-595 |
| Range 9 | 36-45 | 738-834 | 100/110 | 367-396 | 100: 525-625 110: 538-630 |

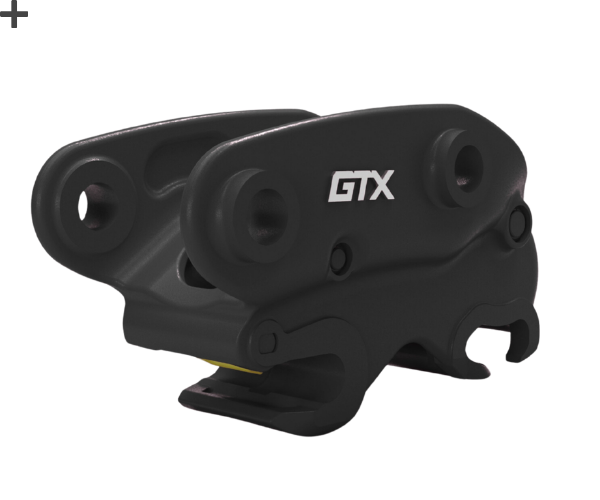

GTX Hydraulic Quick Hitch
The GTX Hydraulic Quick Hitch is designed to transform excavators into secure and reliable multitool carriers. Providing the operator with high-speed connections, unmatched safety features and excellent performance in all applications, the GTX Hydraulic Quick Hitch drives maximum breakout force without compromising on strength.
The GTX Hydraulic Quick Hitch is ideal for general construction and earthworks, quarry and aggregate operations, demolition, site clearance and more. ITR Pacific is the authorised Australian distributor of Miller Quick Hitches, including the GTX range for excavators between 8-50 tonnes.
Key Features
1. Lower Offset Design
Features a low-profile design for improved pin-to-point geometry, enhancing efficiency, machine stability, and overall productivity.
2. High Strength Cast Design
Built with a unique curved frame wholly cast from high-tensile, heat-treated steel for a lightweight design that delivers exceptional strength.
3. Twinlock Front & Rear
Designed with an independent, bi-directional front latch system to ensure complete front pin engagement during tilt motions, and safe operations at a wide range of angles.
4. True 180° Lower Rotation Actuator
Provides a fully integrated tilt system for a guaranteed rotation of 180° for precise angle control and complete power throughout the tilt range in grading, sloping, and finish work.
5. ISO 13031/AS13031 Compliance
Complies with all global quick hitch safety regulations and features a self-contained safety system that ensures attachments remain secure and engaged when rotating and tilting, even in the event of total hydraulic loss.
Specifications
| GTT Range | Excavator Mass (t) | Hitch Mass (kg) | Pin Diameter (mm) | Rotation (180°) | Min Pickup Width (mm) | Pin Pickup Range (mm) |
|---|---|---|---|---|---|---|
| Range 0A | 1-1.5 | 32.9-34.2 | 30 | 180 | 94/96 | 85-118 |
| Range 0B | 1-2 | 34.9-35.5 | 30 | 180 | 103 | 121-161 |
| Range 1A | 2 | 87.7-89.0 | 35 | 180 | 105 | 125-150 |
| Range 1B02 | 2-3 | 90.8-92.7 | 35 | 180 | 117 | 160-200 |
| Range 1B01 | 3-3.5 | 94.4-95.5 | 38/40 | 180 | 117 | 172-215 |
| Range 2A | 5 | 125.9-128.4 | 45 | 180 | 144 | 220-285 |

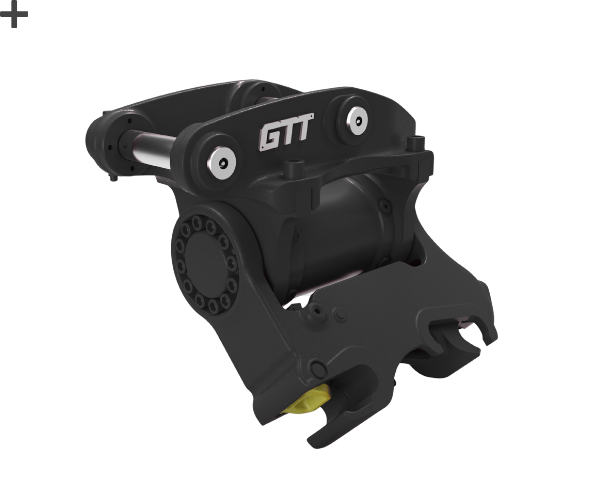

GTT Hydraulic Quick Hitch
The GTT Hydraulic Quick Hitch enables fast and easy attachment changes within the comfort and safety of the cab. Operators are given a wide range of motion, with the GTT's 180° tilt rotation, without the need for specialised equipment. The GTT Hydraulic Quick Hitch increases productivity and simplifies complex jobs, reducing manual handling and overall operating costs while improving efficiency on site.
The ITR x Miller GTT Hydraulic Quick Hitch is suitable for 1-6 tonne excavators working in slope profiling and finish grading, landscaping and contouring, drainage, waterways and more.
Key Features
1. Lower Offset Design
Features a streamlined, lightweight, low-profile design that optimises pin-to-point measurements for maximum breakout forces while delivering machine stability and an increase in overall productivity.
2. High Strength Cast Design
Built with a unique curved frame wholly cast from high-tensile, heat-treated steel, delivering exceptional strength and lightweight durability for reduced fuel consumption and enhanced wear resistance.
3. Twinlock Front & Rear
Equipped with a mechanical locking system for complete front pin engagement, only allowing release when the hitch is in a safe operating position.
4. True 180° Lower Rotation Actuator
Provides a fully integrated tilt system for a guaranteed rotation of 180° for precise angle control and complete power throughout the tilt range in grading, shaping, or digging in challenging conditions.
5. ISO 13031/AS13031 Compliance
Complies with all global quick hitch safety regulations and features a self-contained safety system that ensures attachments remain secure and engaged even in the event of total hydraulic loss.
Specifications
| Power Latch Tilt Range | Excavator Mass (t) | Hitch Mass (kg) | Pin Diameter (mm) | Rotation (180°) | Min Pickup Width (mm) | Pin Pickup Range (mm) |
|---|---|---|---|---|---|---|
| P-Class | 3.5 | 83 | 40 | 180 | 121 | 172-200 |
| R-Class | 5 | 142 | 45 | 180 | 144 | 220-261 |
| Range 3 | 6-10 | 247 | 50/60 | 180 | 164 | 50: 280-317 60:290-320 |
| Range 4 | 11-14 | 484 | 60/65 | 180 | 216 | 60: 345-415 65: 355-420 |
| Range 5 | 15-19 | 548 | 70/80 | 140 | 272 | 70: 376-472 80: 391-477 |
| Range 6 | 20-22 | 661 | 80 | 140 | 302 | 430-520 |

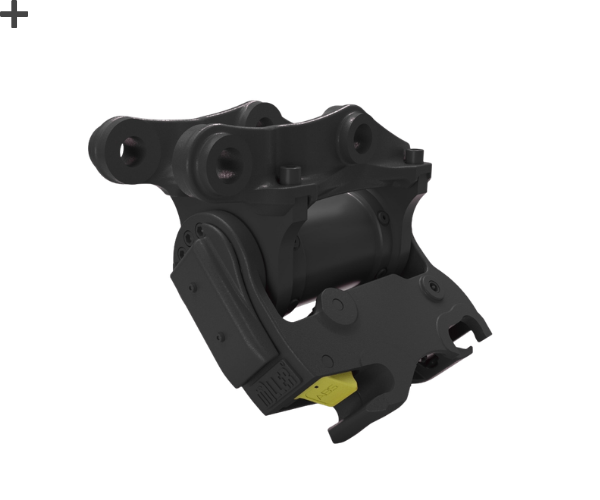

PLT Hydraulic Quick Hitch
The ITR x Miller Powerlatch Tilt Hitch offers up to 180° of tilt rotation for improved versatility in the most challenging working environments. With its compact and lightweight design, operators are enabled to make fast and easy attachment changes while remaining in one position.
The PLT Quick Hitch is suitable for excavators between 8-20 tonnes working in slope profiling and finish grading, landscaping and contouringm drainage, waterways, and more.

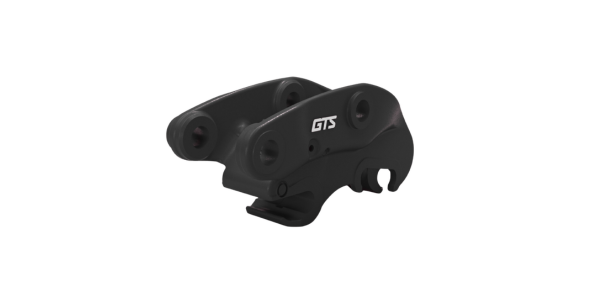

Ready to Dig Bundle
The Ready to Dig Bundle provides everything operators need to get to work immediately, combining a GTS or GTX Hydraulic Quick Hitch and a set of buckets for a cost-effective package. Designed to maximise efficiency, this all-in-one solution is easy to store, compactly packaged and eliminates the need to source attachments separately.
The ITR x Miller Ready-to-Dig Bundle provides customers with excellent value to reduce setup time for 1-9 tone excavators working in construction, civil works, landscaping, utilities, trenching, road maintenance, property development, and more.
Each bundle includes a hitch ready installation kit, and for non-hitch ready machines, full installation kits can be provided.
| Hydraulic Quick Hitch | ||||
|---|---|---|---|---|
| 1 x GTS (0A/0B) | ||||
| Buckets | Width (mm) | Capacity (m3) | Weight (kg) | GET Type |

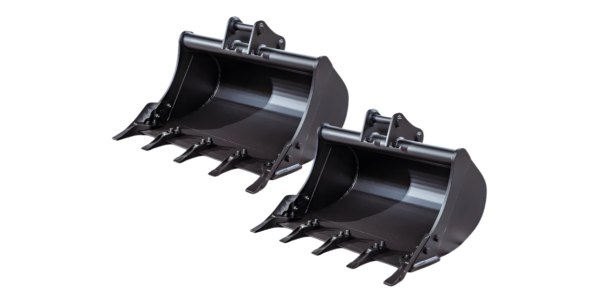

| 1 x General Purpose | 300mm | 0.020 | 33 | BOE |
| 1 x General Purpose | 450mm | 0.030 | 42 | Toothed (4) |

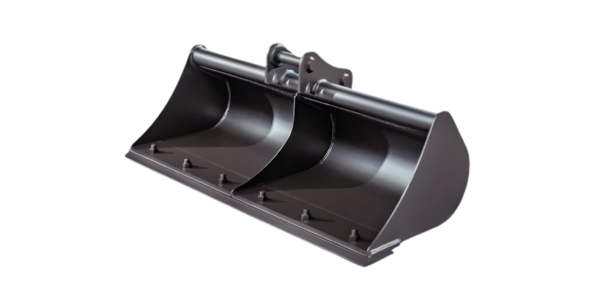

| 1 x Mud | 900mm | 0.071 | 60 | BOE |

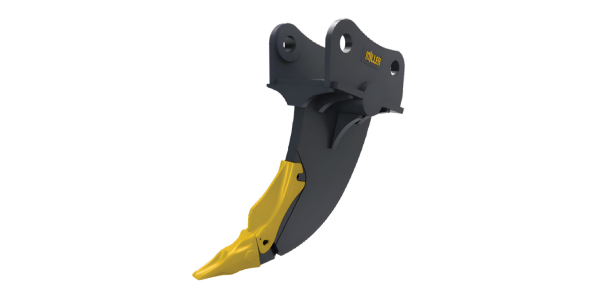

| Ripper | ||||
| 1 x Ripper (0A/0B) | N/A | N/A | 30 | Toothed (1) |
| Hydraulic Quick Hitch | ||||
|---|---|---|---|---|
| 1 x GTS (1A/1B02) | ||||
| Buckets | Width (mm) | Capacity (m3) | Weight (kg) | GET Type |
| 1 x General Purpose | 300mm | 0.035 | 50 | BOE |
| 1 x General Purpose | 450mm | 0.053 | 65 | Toothed (4) |
| 1 x Mud | 1000mm | 0.12 | 112 | BOE |
| Ripper | ||||
| 1 x Ripper (1A/1B02) | N/A | N/A | 38 | Toothed (1) |
| Hydraulic Quick Hitch | ||||
|---|---|---|---|---|
| 1 x GTS (1B01) | ||||
| Buckets | Width (mm) | Capacity (m3) | Weight (kg) | GET Type |
| 1 x General Purpose | 300mm | 0.048 | 62 | BOE |
| 1 x General Purpose | 450mm | 0.071 | 78 | Toothed (4) |
| 1 x Mud | 1100mm | 0.17 | 144 | BOE |
| Ripper | ||||
| 1 x Ripper (1B01) | N/A | N/A | 57 | Toothed (1) |
| Hydraulic Quick Hitch | ||||
|---|---|---|---|---|
| 1 x GTS (2A) | ||||
| Buckets | Width (mm) | Capacity (m3) | Weight (kg) | GET Type |
| 1 x General Purpose | 300mm | 0.06 | 106 | Toothed (3) |
| 1 x General Purpose | 450mm | 0.11 | 126 | Toothed (3) |
| 1 x Mud | 2000mm | 0.25 | 210 | BOE |
| Ripper | ||||
| 1 x Ripper (2A) | N/A | N/A | 76 | Toothed (1) |
| Hydraulic Quick Hitch | ||||
|---|---|---|---|---|
| 1 x GTS (Range 3) | ||||
| Buckets | Width (mm) | Capacity (m3) | Weight (kg) | GET Type |
| 1 x General Purpose | 450mm | 0.16 | 185 | Toothed (3) |
| 1 x General Purpose | 600mm | 0.25 | 215 | Toothed (3) |
| 1 x Mud | 1500mm | 0.4 | 275 | BOE |
| Ripper | ||||
| 1 x Ripper (Range 3) | N/A | N/A | 139 | Toothed (1) |
Extend Your Warranty to 5 Years
Our five-year extended warranty gives you complete peace of mind, meaning you can confidently offer a hitch solution that truly delivers fit & forget reliability.Why Upgrade?
- All Parts & Labour Costs Included
- Back-to-back with Machine Warranty
- Five Years Peace of Mind
