Dozer Undercarriage Wear: When to Turn Your Pins and Bushings

In the world of high-hour mining and civil earthmoving, the undercarriage represents nearly 50% of a dozer's lifetime maintenance cost. For machines like the Cat D6, D8, or D11, the difference between a mid-life service and a total track replacement can be tens of thousands of dollars.

The most effective way to bridge that gap? The Pin and Bushing Turn.

What is a Pin and Bushing Turn?

A track chain is only as strong as its internal joints. As a dozer works, the pin rotates inside the bushing. Because the dozer primarily moves in one direction more than the other, the wear occurs on only one side of these internal components.

A turn involves using a track press to remove the pins and bushings, rotate them 180 degrees to expose the fresh unworn surface, and press them back into the links.

The Signs of Internal Wear: When to Act

Waiting for a track to jump or a pin to snap is too late. You need to monitor these technical indicators to catch the window for a successful turn.

• External Bushing Wear: Use a depth gauge or ultrasonic tool to measure the flat spot on the outside of the bushing where it contacts the sprocket.
• Track Pitch Extension: As the internal pins and bushings wear, the distance between the pins increases. This is track stretch. If your track adjusters are near the end of their stroke, your pitch is likely out of spec.
• Sprocket Hooking: If your sprocket teeth are starting to look like shark fins (hooked), it’s a sign the track pitch no longer matches the sprocket profile.
• Snaking Tracks: If the track chain looks wavy or snaky when laid out or viewed from the cab, the internal tolerances have opened up significantly.

The "Turn" Window: Timing is Everything

If you wait too long, you hit critical wear. Once the bushing wall becomes too thin or the link counterbore is elongated, a turn is no longer possible, and the entire chain must be scrapped.

The 120% Rule

Most maintenance superintendents aim for a turn when the bushings are at approximately 100% to 120% of their allowable wear (based on manufacturer wear charts), provided the links still have enough rail height to justify the labor.

ROI Comparison: Turn vs. Replace

Why ITR Pacific for Your Dozer Parts & Service?

At ITR, we don't just supply the dozer parts; we manage the lifecycle. Our specialised track shops in Brisbane, Perth, and Sydney are equipped with 200-ton and 300-ton track presses capable of handling everything from a D3 to a D11.

• Genuine ITR Seals: We use high-performance All-Seasons seals during the turn to ensure the lubricant stays in and the grit stays out.

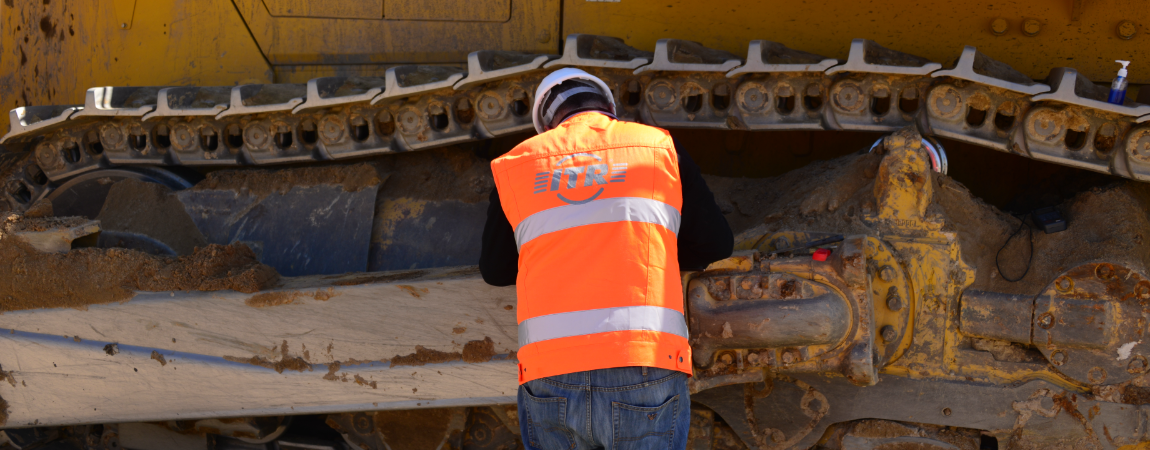

• Expert Inspections: Our field reps provide comprehensive undercarriage inspections, giving you a data-backed report on exactly when your turn should be scheduled.

Summary for Maintenance Superintendents

A proactive pin and bush turn is the hallmark of an efficient maintenance program. By rotating the wear surfaces, you effectively get two lives out of a single set of pins and bushings, drastically lowering your cost-per-hour.
